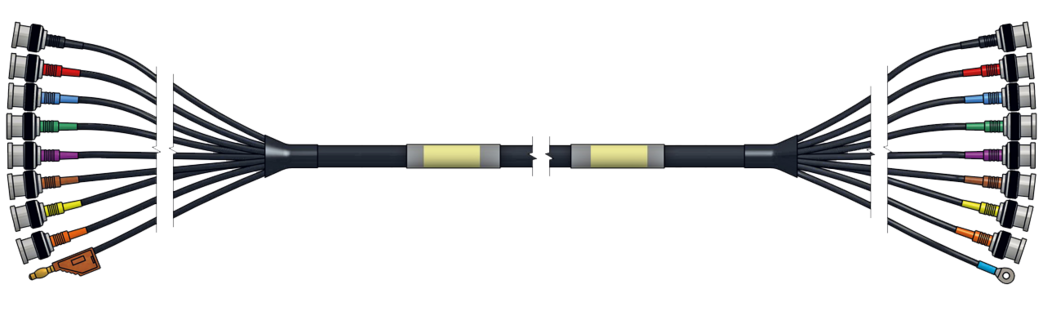

8-fold coax collection cable
8x BNC male connector and 8x BNC female connector
Application
collection cable for a structured and proper laying for example at a test bench
Additional information
- Further service aspects: Individual marking by shrinkable sleeve as for example internal material number or barcode
- Also possible 16-fold and with BNC female connector.
Connector
| side 1 | 8x BNC male connector + 1 Lamellar connector |
|---|---|
| side 2 | 8x BNC female connector + 1 ring cable lug |
side 1
8x BNC male connector + 1 Lamellar connector
side 2
8x BNC female connector + 1 ring cable lug
Cable data
| construction | 8 x AWG 26 |
|---|---|
| insulation | TPFK |
| inner sheath | TPE |
| outer sheath | PUR |
| sheath colour | black |
| outer diameter | approx. 11,6 mm |
| operating voltage | max. 900 V |
| temperature range | -50°C / +90°C (short-time use +125°C 2500h) |
| special characteristics | mechanically robust smooth laying |
construction
8 x AWG 26
insulation
TPFK
inner sheath
TPE
outer sheath
PUR
sheath colour
black
outer diameter
approx. 11,6 mm
operating voltage
max. 900 V
temperature range
-50°C / +90°C (short-time use +125°C 2500h)
special characteristics
mechanically robust
smooth laying
Configuration example
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3600-4042-00100 | PUR | 1000 mm | Send inquiry |
item no.
Sheath material
length "L" [mm]
SAB identification: item number, batch number
