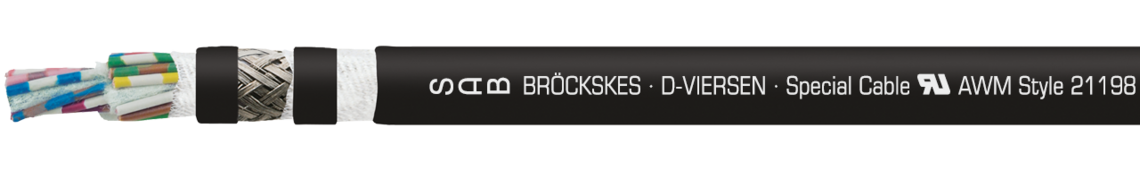

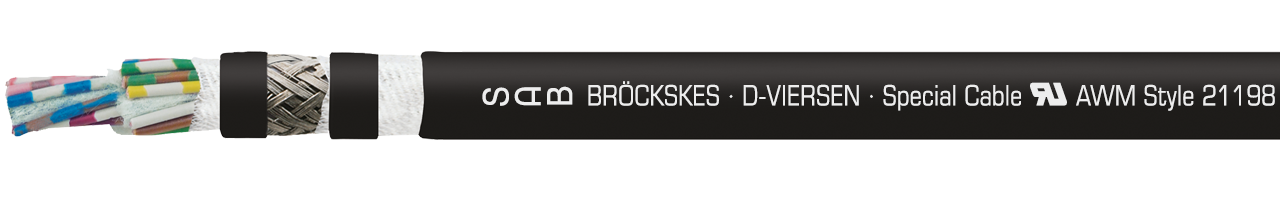

Sensor cable
continuously flexible TPE/PUR data cable with coloured core 3 x (1 x 0,14 mm²)D + 12 x 0,14 mm²
Marking for sensor cable: SAB BRÖCKSKES · D-VIERSEN · Special Cable UL AWM Style 21198 80°C 300V CSA AWM I A/B 80°C 300V FT2 CE
Application
This highly flexible sensor cable is suitable for the transmission of measured values of a weather station for the control of yaw mechanism in wind energy plants. The highly flexible construction makes the cable resistant against the existing vibration of the rotor system.
Construction
| Conductor | bare copper strands |
|---|---|
| Insulation | TPE |
| Colour code | with reference to DIN 47100 |
| Stranding | specially adjusted layering with non-woven tape over each layer |
| Screen | wrapped with tinned copper |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | black (RAL 9005) |
bare copper strands
TPE
with reference to DIN 47100
specially adjusted layering with non-woven tape over each layer
wrapped with tinned copper
non-woven tape
PUR
black (RAL 9005)
Technical data
| Peak operating voltage | max. 150 V |
|---|---|
| Voltage UL/CSA | 300 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d individual bending: 90° for a length of 7 cm |
| Temperature range | DIN VDE fixed laying: -40°C / +80°C flexible application: -30°C / +70°C high temperature: up to +90°C
UL/CSA up to +80°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Resistance | very good against water, gycol and frost |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 150 V
300 V
core/core 2000 V
core/screen 2000 V
fixed laying: 5 x d
flexible application: 10 x d
individual bending: 90° for a length of 7 cm
DIN VDE
fixed laying: -40°C / +80°C
flexible application: -30°C / +70°C
high temperature: up to +90°C
UL/CSA
up to +80°C
acc. to IEC 60754-1 + VDE 0482-754-1
very good against water, gycol and frost
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section | Outer-ø ± 5% | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C max. | |
|---|---|---|---|---|---|---|
| xxxx-xxxx | 3 x (1 x 0,14 mm²)D + 12 x 0,14 mm² | 7,2 mm | 45,1 kg/km | 74 kg/km | 139,3 Ω/km | Send inquiry |
cross section
at 20°C max.
Other dimensions and colours are possible on request.
