BiAFF

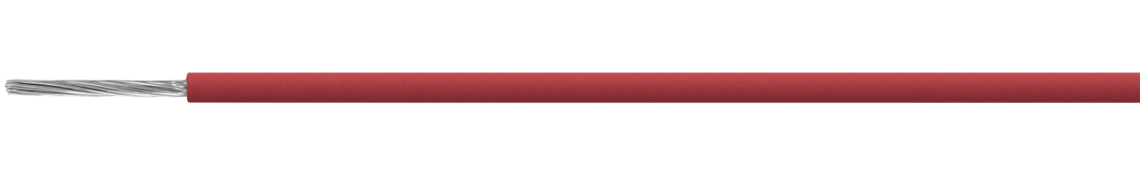

Silicone (Besilen®) insulated strands, highly flexible
Application
SiAFF/BiAFF is highly flexible silicone insulated strands that are flexible at low temperatures. Moreover, they are made for highly flexible applications for internal wiring of lamps, heating appliances, switchboard plants and distributors in industries such as smelteries, steelworks, and hot-rolling mills, industrial oven and textile machine construction, lamp, illumination, and electric industries as well as electric drive technology.
Outstanding features
- halogen-free
- flexible at low temperatures
- heat resistant
- highly flexible
Additional information
Colour code for single conductors:
0 = green-yellow 4 = grey
1 = blue 5 = white
2 = black 6 = reddish brown
3 = brown 7 = red
Construction
| Conductor | tinned copper strands, highly flexible |
|---|---|
| Insulation | Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1 |
tinned copper strands, highly flexible
Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1
Technical data
| Nominal voltage | Uo/U 300/300 V |
|---|---|
| Testing voltage | 2000 V |
| Min. bending radius | 5 x d |
| Radiation resistance | 2 x 10^7 cJ/kg |
| Temperature range | fixed laying: -40/+180°C flexible application: -25/+180°C short-time use: +250°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of conflagration gases | IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Chem. resistance | see "Technical Data" - Chemical resistance |
| Weather resistance | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/300 V
2000 V
5 x d
2 x 10^7 cJ/kg
fixed laying: -40/+180°C
flexible application: -25/+180°C
short-time use: +250°C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
see "Technical Data" - Chemical resistance
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
Nominal cross section |
Largest single wire-ø | Copper figure | Cable weight ≈ | Outer-ø ± 5% | |
|---|---|---|---|---|---|---|
| L0115025…* | 0,25 mm² | 0,05 mm | 2,4 kg/km | 6 kg/km | 1,9 mm | Send inquiry |
| L0115050…* | 0,5 mm² | 0,05 mm | 4,8 kg/km | 9 kg/km | 2,2 mm | Send inquiry |
| L0115051…* | 0,5 mm² | 0,07 mm | 4,8 kg/km | 9 kg/km | 2,2 mm | Send inquiry |
| L0115075…* | 0,75 mm² | 0,05 mm | 7,2 kg/km | 12 kg/km | 2,4 mm | Send inquiry |
| L0115076…* | 0,75 mm² | 0,07 mm | 7,2 kg/km | 13 kg/km | 2,5 mm | Send inquiry |
| L0115100…* | 1 mm² | 0,05 mm | 9,6 kg/km | 15 kg/km | 2,7 mm | Send inquiry |
| L0115101…* | 1 mm² | 0,07 mm | 9,6 kg/km | 15 kg/km | 2,7 mm | Send inquiry |
| L0115150…* | 1,5 mm² | 0,07 mm | 14,4 kg/km | 22 kg/km | 3,3 mm | Send inquiry |
| L0115250…* | 2,5 mm² | 0,07 mm | 24 kg/km | 35 kg/km | 4 mm | Send inquiry |
section
wire-ø
Other dimensions and colours are possible on request.
