S PN 667
Profinet type C, continuously flexible with UL recognition, CSA approval

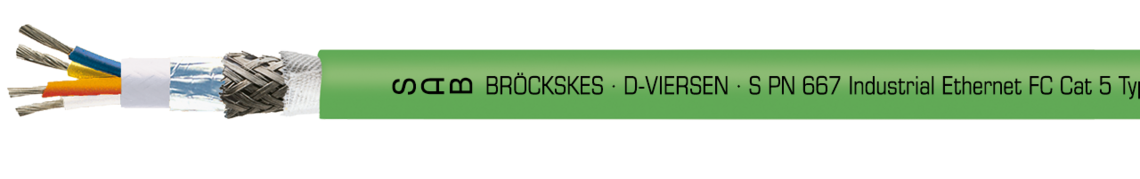

Marking for S PN 667 Ethernet: SAB BRÖCKSKES · D-VIERSEN · S PN 667 Industrial Ethernet FC Cat 5 Typ C 2x2x22AWG UL AWM Style 21198 80°C 300V CSA AWM I/II A/B 80°C 300V FT2 CE
Application
Fast-Connect Profinet cable type C with UL and CSA approval for permanently flexible use.
Thanks to the “Fast-Connect” cable construction (7-wires), this Profinet cable is particularly suitable when short installation times are required. For extreme bending stresses, the conductor structure can be modified to a 19-wires version.
Outstanding features
- UL recognized, CSA approved
- suitable for cable tracks
- halogen-free
- very good oil resistance
- short assembling time by „Fast Connect” construction
- for extreme bending stress - conductor construction 19 wires
Additional information
also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 2 x 2 x 22 AWG |
|---|---|
| Conductor | tinned copper strands, 7 wires |
| Insulation | special polymer |
| Colour code | blue, yellow, white, orange |
| Stranding | in layers |
| Wrapping | PETP-foil |
| Inner sheath | thermoplastic material |
| Screen | alu foil and tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | green (similar RAL 6018) |
2 x 2 x 22 AWG
tinned copper strands, 7 wires
special polymer
blue, yellow, white, orange
in layers
PETP-foil
thermoplastic material
alu foil and tinned copper braiding
non-woven tape
PUR
green (similar RAL 6018)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Voltage UL/CSA | 300 V |
| Testing voltage | core/core: 2000 V core/screen: 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d continuously flexible: 15 x d |
| Temperature range | fixed laying: -40/+70 °C flexible application: -40/+70 °C UL/CSA: up to +80°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Characteristic impedance | 100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173) |
| UL Style | 21198 |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
300 V
core/core: 2000 V
core/screen: 2000 V
fixed laying: 5 x d
flexible application: 10 x d
continuously flexible: 15 x d
fixed laying: -40/+70 °C
flexible application: -40/+70 °C
UL/CSA: up to +80°C
acc. to IEC 60754-1 + VDE 0482-754-1
TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency
acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173)
21198
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Conductor construction | max. core-ø | Outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km | |
|---|---|---|---|---|---|---|---|---|
| L06672202 | 2 x 2 x 22 AWG | 7 wires | 1,55 mm | 6,5 ± 0,2 mm | 33,8 kg/km | 60 kg/km | 58.8 | Send inquiry |
| L06679001 | 2 x 2 x 22 AWG | 19 wires | 1,55 mm | 6,5 ± 0,2 mm | 33,8 kg/km | 58 kg/km | 58.8 | Send inquiry |
at 20°C acc. to VDE 0812
max. Ω/km
Other dimensions and colours are possible on request.
