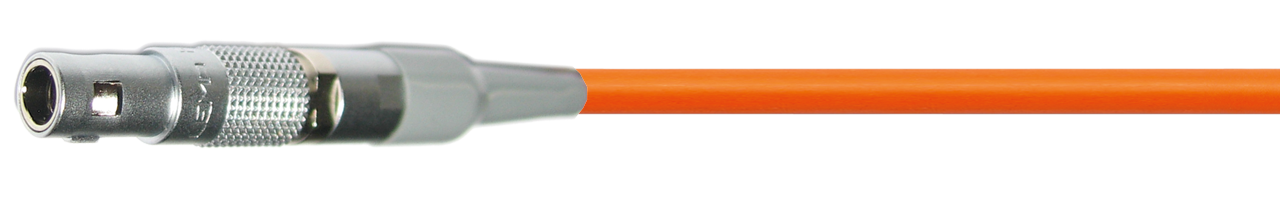

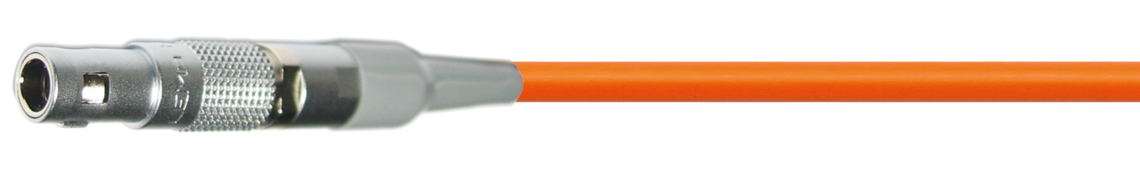

Harnessed Ethernet Cable

Ethernet cable on both side 4-pole Lemo male connector

Ethernet cable	2 x 2 x 28 AWG (L 0662-9015)
Cable length	2,50 m (S 0662-4001) 5,00 m (S 0662-4002) 12,00 m (S 0662-4003) 25,00 m (S 0662-4004) 50,00 m (S 0662-4005) 100,00 m (S 0662-4006)

Ethernet cable

2 x 2 x 28 AWG (L 0662-9015)

Cable length

2,50 m (S 0662-4001)

5,00 m (S 0662-4002)

12,00 m (S 0662-4003)

25,00 m (S 0662-4004)

50,00 m (S 0662-4005)

100,00 m (S 0662-4006)

Side 1	▼
Lemo connector	FGG.00.304.CYCD27Z 4-pole with bend relief grey
Pin configuration	pin 1 = white, pin 2 = blue, pin 3 = yellow, pin 4 = orange
Shield	connected on housing
Connector	Lemo Typ FGG.00.304.CYCD27Z 4-pole
Side 2	▼
Lemo connector	FGG.00.304.CYCD27Z 4-pole with bend relief grey
Pin configuration	pin 1 = yellow, pin 2 = orange, pin 3 = white, pin 4 = blue
Shield	connected on housing
Connector	Lemo Typ FGG.00.304.CYCD27Z 4-pole

Side 1

▼

Lemo connector

FGG.00.304.CYCD27Z

4-pole with bend relief grey

Pin configuration

pin 1 = white, pin 2 = blue, pin 3 = yellow, pin 4 = orange

Shield

connected on housing

Connector

Lemo Typ FGG.00.304.CYCD27Z 4-pole

Side 2

▼
