GP 400 Sy
400 Hz Ground Power supply cable - Symmetrical
Marking example: SAB BRÖCKSKES · D-VIERSEN · GP 400 Sy 7x35,0mm²+6x3x1,0mm² 3400-7213 CE and continuous meter marking
Application
For use as fixed installation cable in 400 Hz systems, e.g. between 400 Hz generator and cable dispenser.
Outstanding features
- reduced outside diameter
Additional information
Also available with 24 control cores!
Construction

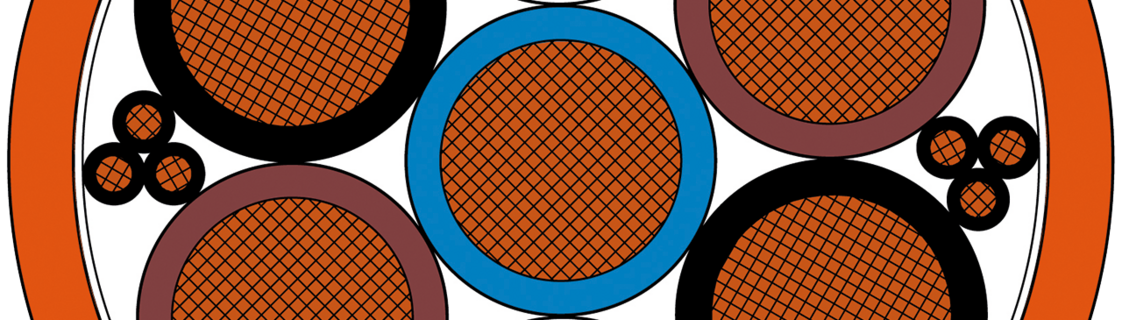

| Conductor | tinned copper strands |
|---|---|
| Insulation | 35,0mm²: PVC 1,0mm²: SABIX® |
| Colour code | control cores: black with numbers 1-18 neutral core: blue phase core: white, brown, black (two conductors of the same colour form the phase) |
| Stranding | phase conductor concentrically around the neutral conductor, control conductors as triple in the fillers |
| Sheath material | PVC |
| Sheath colour | orange |
tinned copper strands
35,0mm²: PVC
1,0mm²: SABIX®
control cores: black with numbers 1-18
neutral core: blue
phase core: white, brown, black
(two conductors of the same colour form the phase)
phase conductor concentrically around the neutral conductor, control conductors as triple in the fillers
PVC
orange
Technical data
| Nominal Voltage | Uo/U 0,6/1 kV |
|---|---|
| Testing Voltage | core/core 4000 V AC |
| Min. bending radius | fixed laying: 4 x d flexible application : 8 x d |
| Temperature range | fixed laying: -40/+70°C flexible application: +5/+70°C |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 0,6/1 kV
core/core 4000 V AC
fixed laying: 4 x d
flexible application : 8 x d
fixed laying: -40/+70°C
flexible application: +5/+70°C
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section | Approx. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C max. | Voltage drop | Outer-ø ± 5% | |
|---|---|---|---|---|---|---|---|---|
| L34007210 | 7 x 35,0 mm² | 37,0 mm | 2352,0 kg/km | 3003 kg/km | 0,554 Ω/km | 1,108 [mV/(A*m)] | 37 | Send inquiry |
| L34007213 | 7 x 35,0 mm² + 6 x 3 x 1,0 mm² | 37,0 mm | 2524,8 kg/km | 3125 kg/km | 0,554 / 19,5 Ω/km | 1,108 / 39,0 [mV/(A*m)] | 37 | Send inquiry |
cross section
at 20°C max.
Other dimensions and colours are possible on request.
