GP 400 SF 28V DC
400 Hz Ground Power supply cable 28 V DC
Marking example: SAB BRÖCKSKES · D-VIERSEN · GP 400 SF 28V DC 6x40,0mm²+14x1,0mm² 3400-9020 CE and continuous meter marking
Application
For the application as fixed supply cable with optimised installation or for a flexible hand-held application without elevated mechanical stress for example mobile GPUs. Excellent flexibility due to smooth core and sheath materials make possible an easy laying and handling.
Outstanding features
- low capacity insulation
- extremely flexible and smooth handling
- also usable as supply cable at the aircraft itself
- very good installation in narrowest spaces
- good resistance characteristics also against wear and tear

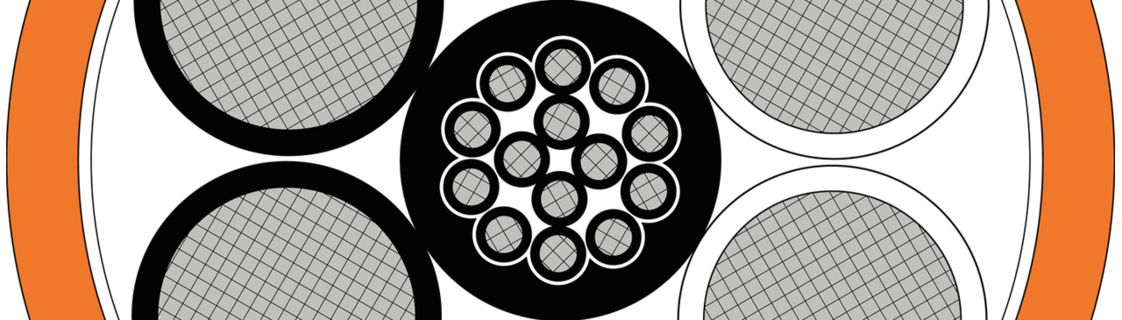

Construction
| Conductor | tinned copper strands, fine wires |
|---|---|
| Insulation | SABIX® |
| Colour code | 1,0 mm²: black cores with consecutive numbers 1 - 14 40,0 mm²: white cores with consecutive numbers 1 - 3, black cores with consecutive numbers 1 - 3 |
| Stranding | in layers |
| Sheath material | PVC |
| Sheath colour | orange |
tinned copper strands, fine wires
SABIX®
1,0 mm²: black cores with consecutive numbers 1 - 14
40,0 mm²: white cores with consecutive numbers 1 - 3,
black cores with consecutive numbers 1 - 3
in layers
PVC
orange
Technical Data
| Voltage | 28 V DC |
|---|---|
| Testing voltage | core/core 600 V |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d |
| Temperature range | fixed laying: -40/+70 °C flexible application: -20/+70 °C |
| Oil resistance | |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
28 V DC
core/core 600 V
fixed laying: 4 x d
flexible application: 6 x d
fixed laying: -40/+70 °C
flexible application: -20/+70 °C
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section | Outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C max. | |
|---|---|---|---|---|---|---|
| L34009020 | 6 x 40,0 mm² + 14 x 1,0 mm² | min. 36,0 mm / max. 37,99 mm | 2438,4 kg/km | 2910 kg/km | 40,0 mm²: max. 0,500 Ω/km / 1,0 mm²: max. 20,0 Ω/km | Send inquiry |
cross section
at 20°C max.
Other dimensions and colours are possible on request.
