GP 400 7F
400 Hz Ground Power supply cable - SevenFlex
Marking example: SAB BRÖCKSKES · D-Viersen · Special GP 400 35,0mm²+4x1,0mm² 3400-9006 CE and continuous meter marking
Application
Symmetrical construction with high flexibility. Minimum bending radius (easy to coil even in tight spaces) and high quality electrical performance (low voltage drop and low voltage unbalance). Can be used over longer distances.
Outstanding features
- low capacity insulation
- abrasion-resistant PUR sheath
- control cores symmetrically arranged
- cold flexible
- halogen-free
- oil resistant
- weather resistant

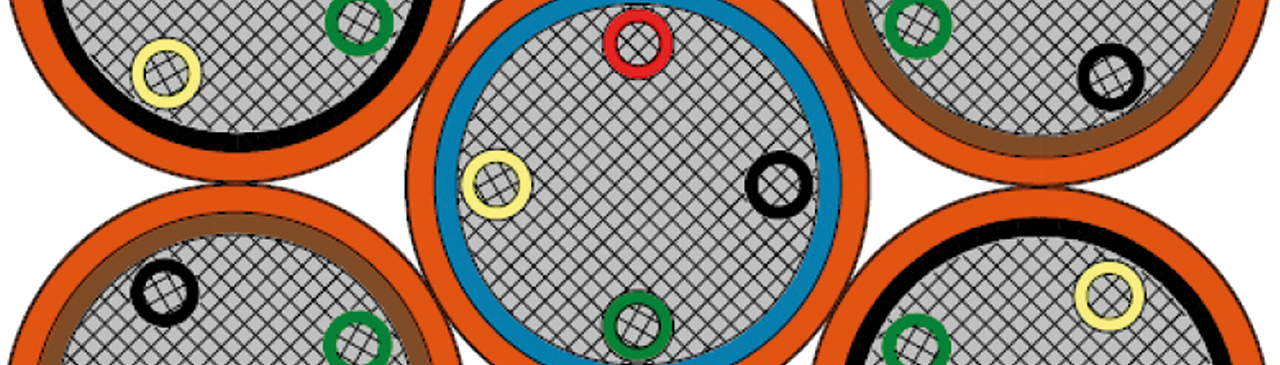

Construction
| Conductor | tinned copper strands |
|---|---|
| Isolierhülle | SABIX® |
| Colour code | control cores: red, black, green, yellow power supply core: red |
| Stranding | control cores within the power supply core |
| Sheath material | PUR |
| Sheath colour | orange |
| Stranding | openly stranded |
tinned copper strands
SABIX®
control cores: red, black, green, yellow
power supply core: red
control cores within the power supply core
PUR
orange
openly stranded
Technical Data
| Nominal voltage | Uo/U 0,6/1 kV |
|---|---|
| Testing voltage | core/core 4000 V AC |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
Uo/U 0,6/1 kV
core/core 4000 V AC
fixed laying: 4 x d
flexible application: 6 x d
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
gemäß RoHS-Richtlinie der Europäischen Union
Dimensions
| item no. |
No. of cores x cross section | Approx. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C max. | Voltage drop | |
|---|---|---|---|---|---|---|---|
| L34009006 | 7 x (35,0 mm² + 4 x 1,0 mm²) | 40,2 mm | 2654,4 kg/km | 2969,2 kg/km | 0,554 / 19,5 Ω/km | 1,108 / 39,0 [mV/(A*m)] | Send inquiry |
cross section
at 20°C max.
Other dimensions and colours are possible on request.
