BB 380 Boarding Bridge
Cable for the flexible application in passenger bridges

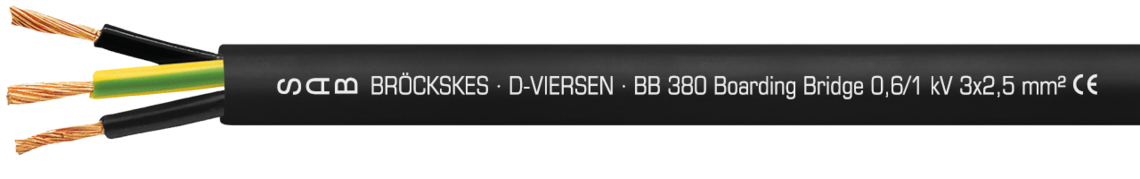

Marking for BB 380 Boarding Bridge 53800325: SAB BRÖCKSKES · D-VIERSEN · BB 380 Boarding Bridge 0,6/1 kV 3x2,5 mm² CE
Application
Sunlight & weather resistant cable for the flexible application in passenger & boarding bridges.
Outstanding features
- halogen-free
- oil resistant
- weather resistant
- sunlight resistant
Additional information
For installation in passenger bridges.
Screened version on request!
Also possible as hybrid construction! (4x2x26AWG)Cat.6A+(3x0,25mm²)CB+10G1,0mm²
Construction
| Conductor | bare copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 5 |
|---|---|
| Insulation | special SABIX® |
| Colour code | black cores with consecutive numbers acc. to EN 50334; green-yellow earth wire from 3 cores |
| Stranding | in layers |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | black (RAL 9005) |
bare copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 5
special SABIX®
black cores with consecutive numbers acc. to EN 50334; green-yellow earth wire from 3 cores
in layers
non-woven tape
PUR
black (RAL 9005)
Technical data
| Nominal voltage | up to 1,00 mm²: Uo/U 300/500 V from 1,50 mm²: Uo/U 0,6/1 kV |
|---|---|
| Testing voltage | 300/500 V: 3000 V 0,6/1 kV: 4000 V |
| Min. bending radius | fixed laying: 4 x d flexible: 7,5 x d |
| Radiation resistance | 5 x 10^7 cJ/kg |
| Temperature range | fixed laying: -40/+90 °C flexible application: -30/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2 |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Flexibility | very good |
| Weather resistance | good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
up to 1,00 mm²: Uo/U 300/500 V
from 1,50 mm²: Uo/U 0,6/1 kV
300/500 V: 3000 V
0,6/1 kV: 4000 V
fixed laying: 4 x d
flexible: 7,5 x d
5 x 10^7 cJ/kg
fixed laying: -40/+90 °C
flexible application: -30/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L53800325 | 3 x 2,50 mm² | 0,26 mm | 10,0 mm | 72,0 kg/km | 146 kg/km | Send inquiry |
| L53800525 | 5 x 2,50 mm² | 0,26 mm | 12,2 mm | 120,0 kg/km | 224 kg/km | Send inquiry |
| L53800560 | 5 x 6,00 mm² | 0,31 mm | 15,6 mm | 288,0 kg/km | 426 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
