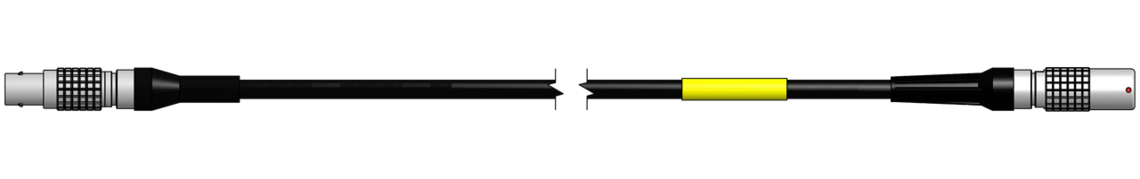

Sensor cable
with 6 pole Lemo male and female connector
Application
sensor extension cable
Outstanding features
Cable characteristics:
- mechanically verry rugged
- very flexible
- +125 °C / 2500h
Additional information
SAB marking:
item number, order number, length
Cable data
| Construction | 7 x AWG26 |
|---|---|
| Insulation | TPFK |
| Screen | overall screen >80% |
| Outer sheath | PUR 420, colour black, mat surface |
| Outer diameter | approx. 4,3 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | max. 350 V |
| Temperature range | -40/+90°C (+125°C / 2500h) |
| Oil resistance | very good - TMPU acc. to EN50363-10-2 |
Construction
7 x AWG26
Insulation
TPFK
Screen
overall screen >80%
Outer sheath
PUR 420, colour black, mat surface
Outer diameter
approx. 4,3 mm
Min. bending radius
10 x d
Peak operating voltage
max. 350 V
Temperature range
-40/+90°C (+125°C / 2500h)
Oil resistance
very good - TMPU acc. to EN50363-10-2
Connector
| Side 1 | Lemo male connector, 6 pole |
|---|---|
| Side 2 | Lemo female connector, 6 pole |
Side 1
Lemo male connector, 6 pole
Side 2
Lemo female connector, 6 pole
Configuration example
| item no. | length | |
|---|---|---|
| S3833-4291-00100 | 100 cm | Send inquiry |
item no.
length
Other lengths on request.
