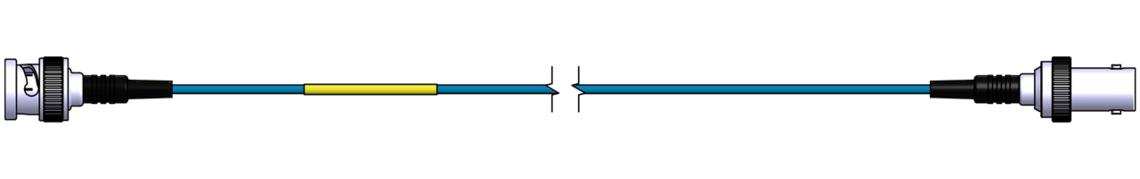

Low Noise Coaxial Cable
with BNC male and female connector
Application
Low-noise coaxial cable with BNC male connector (50 Ω) and BNC female connector (50 Ω). This coaxial cable has very good resistance to oil and chemicals and can be used at temperatures up to max. +250 °C. The cable is available in a standard length of 100 cm. On customer request, we can also offer other lengths.
Outstanding features
Cable characteristics:
- low noise
- temperature resistant up to +250 °C
- oil and chemical resistant - very good
Additional information
SAB marking:
item number, order number, length
Cable data
| Construction | 1 x 0,25 mmØ |
|---|---|
| Insulation | TPFK |
| Screen | overall screen > 80% |
| Outer sheath | TPFK, colour blue - RAL 5015 |
| Outer diameter | approx. 1,9 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | 375 V |
| Temperature range | -55/+250 °C |
| Oil resistance | very good |
Construction
1 x 0,25 mmØ
Insulation
TPFK
Screen
overall screen > 80%
Outer sheath
TPFK, colour blue - RAL 5015
Outer diameter
approx. 1,9 mm
Min. bending radius
10 x d
Peak operating voltage
375 V
Temperature range
-55/+250 °C
Oil resistance
very good
Connector
| Side 1 | BNC male connector 50 Ω |
|---|---|
| Side 2 | BNC female connector 50 Ω |
Side 1
BNC male connector 50 Ω
Side 2
BNC female connector 50 Ω
Configuration example
| item no. | length | |
|---|---|---|
| S3620-4020-00100 | 100 cm | Send inquiry |
item no.
length
Other lengths on request.
