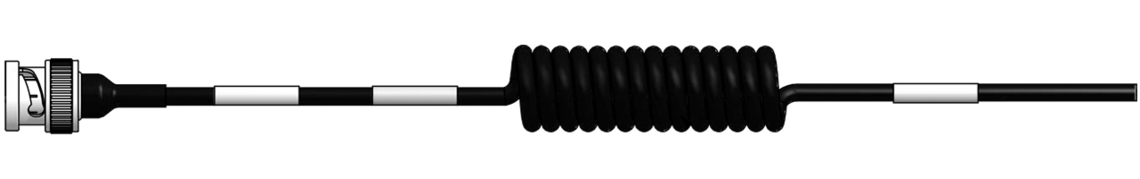

Helix Cable
with axial outlets, BNC connector and smoothly cut end
Application
Additional information
Among others the following cable types belong to our delivery program:
- low-noise cable
- RG 316
- RG 58
- RG 179
- coax cables with 50 Ω or 75 Ω
- cables with heat resistant, flexible outer sheath up to +150°C
Please choose from the following plug connectors:
- UHF plug connector
- mini UHF plug connector
- MMCX plug connector
- SMB plug connector
- ...
Technical Data
| Temperature range | -40 °C to +90 °C (cable) |
|---|---|
| Voltage range | max. 500 V ( cable) |
| Connection side 1 | HF plug connector |
| Connection side 2 | cut smoothly |
Temperature range
-40 °C to +90 °C (cable)
Voltage range
max. 500 V ( cable)
Connection side 1
HF plug connector
Connection side 2
cut smoothly
Cable characteristics
| SAB item no. | L3600-9064 / KOAX 50 Ω |
|---|---|
| Dimension | AWG 22/19 |
| Conductor | bare copper strands, fine wires |
| Insulation | SABIX® |
| Screen | wrapped with tinned copper braiding |
| Outer sheath | PUR, black (similar RAL 9005) |
| Outer diameter | approx. 5,0 mm |
SAB item no.
L3600-9064 / KOAX 50 Ω
Dimension
AWG 22/19
Conductor
bare copper strands, fine wires
Insulation
SABIX®
Screen
wrapped with tinned copper braiding
Outer sheath
PUR, black (similar RAL 9005)
Outer diameter
approx. 5,0 mm
Item no. with length code
| item no. | length | |
|---|---|---|
| S3600-4103-00050 | 0,5 m | Send inquiry |
| S3600-4103-00100 | 1,0 m | Send inquiry |
| S3600-4103-00200 | 2,0 m | Send inquiry |
| S3600-4103-00300 | 3,0 m | Send inquiry |
| S3600-4103-00500 | 5,0 m | Send inquiry |
| S3600-4103-00750 | 7,5 m | Send inquiry |
| S3600-4103-01000 | 10,0 m | Send inquiry |
| S3600-4103-01500 | 15,0 m | Send inquiry |
| S3600-4103-02000 | 20,0 m | Send inquiry |
| S3600-4103-02500 | 25,0 m | Send inquiry |
item no.
length
Other lengths on request.
