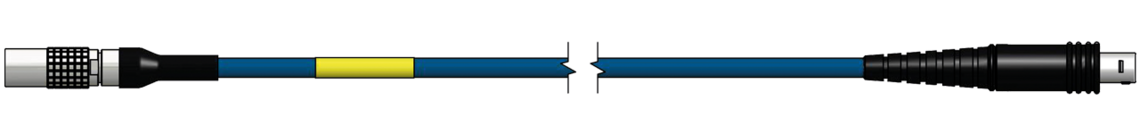

FETK extension
with Lemo female connector 10-pole and Lemo male connector 10-pin
Application
Extension of FETK interface cable and connection to FETK interface module for example ES89x.
Individual marking by shrinkable sleeve as for example with internal material no. or barcode.
Additional information
SAB marking:
item no., order no., length
Survey measuring chain
| Interface cable | FETK interface cable |
|---|---|
| Extension cable | FETK extension cable |
| Interface module | FETK interface module for example ES59x |
FETK interface cable
FETK extension cable
FETK interface module for example ES59x
Connector
| Side 1 | Lemo female connector 10-pole |
|---|---|
| Seite 2 | Lemo male connector 10-pin |
Lemo female connector 10-pole
Lemo male connector 10-pin
Cable data
| Dimension | 4 x 2 x AWG26 + 2 x AWG24 |
|---|---|
| Isolation | TPFK |
| Screen | global braiding 100% |
| Outer sheath | PUR, colour blue, matt surface |
| Outer diameter | approx. 6,6 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | max. 90 V |
| Temperature range | -40°C/+90°C (+125°C / 2500h) |
| Oil resistance | very good - TMPU acc. to EN50363·10-2 |
4 x 2 x AWG26 + 2 x AWG24
TPFK
global braiding 100%
PUR, colour blue, matt surface
approx. 6,6 mm
10 x d
max. 90 V
-40°C/+90°C (+125°C / 2500h)
very good - TMPU acc. to EN50363·10-2
Configuration example
| item no. | length | |
|---|---|---|
| S1631-4112-00100 | 100 cm | Send inquiry |
Other lengths on request.
