CATLine CAT. 6A S - IE Connection cable

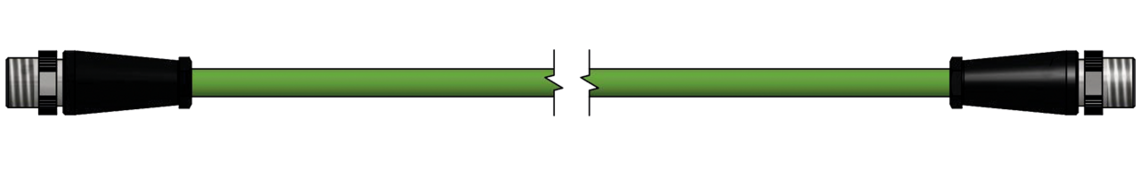

Industrial Ethernet cable, suitable for cable tracks, with moulded M12 male connector assembly at both sides

connection diagram/pin assignment
side 1	TIA 568-B	side 2
M12 connector	core	M12 connector
Pin 1	white-orange	Pin 1
Pin 2	orange	Pin 2
Pin 3	white-green	Pin 3
Pin 4	green	Pin 4
Pin 5	white-brown	Pin 5
Pin 6	brown	Pin 6
Pin 7	white-blue	Pin 7
Pin 8	blue	Pin 8
housing	screen	housing

Temperature range

-40 °C to +170 °C

Voltage range

max. 90 V

Connection side 1

male connector, 8-pole, M12, X-coded

Connection side 2

male connector, 8-pole, M12, X-coded

SAB item no.	L1677-4631
Dimension	4 x 2 x 26 AWG
Conductor	bare copper strands, fine wires
Insulation	special polymer
Screen	alu foil and tinned copper braiding
Outer sheath	PUR, green (similar RAL 6018)
Outer diameter	approx. 7,1 mm
Approvals	UL/CSA
Oil resistance	TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
Min. bending radius	flexible application: 5 x d continuously flexible: 15 x d

SAB item no.

L1677-4631

Dimension

4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special polymer

Screen

alu foil and tinned copper braiding

Outer sheath

PUR, green (similar RAL 6018)

Outer diameter

approx. 7,1 mm

Approvals

UL/CSA

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Min. bending radius

flexible application: 5 x d

continuously flexible: 15 x d
