Current supply cable
for data transmission and voltage supply of modules
Current supply cable for data transmission and voltage supply of modules
Application
Besides different harnessed cables for data transmission, SAB BRÖCKSKES also offers various harnessing products for the current supply of modules. There are also different construction types available that can be adapted to your special requirements.
Additional information
Further cable types are possible on request for example:
- sheath material up to +150°C, silicone free
- different cable lengths
- various sheath colours and marking
- different dimensions, sections and numbers of cores (dependant on plug)
You can choose from different plug connectors:
- Lemo plug connector
- ODU plug connector
- Fischer plug connector
- Yamaichi plug connector
- Segment plug connector
Connection ends for example:
- round plug connector 2-pole 2 x segment plugs

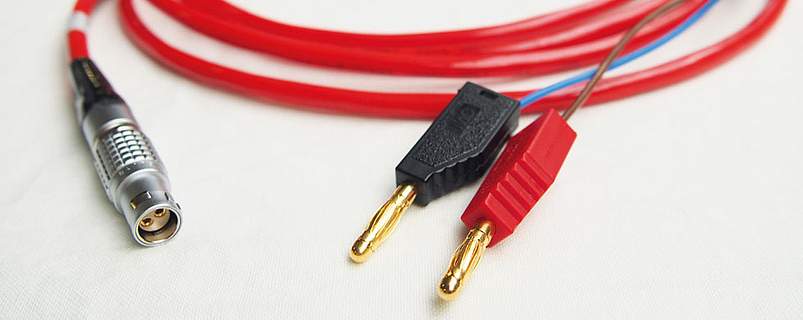

- Lemo round plug connector 6-pole 2 x segment plugs
Cable variations for example:
- 2 x 0,75 mm²
- 2 x AWG 28 + 1 x AWG + 2 x 0,50 mm²
Construction
| conductor | tinned copper strands |
|---|---|
| core insulation | FEP |
| outer sheath | special material |
| sheath colour | traffic red (RAL 3020) |
