S PB 640
highly flexible PUR Profibus-DP cable

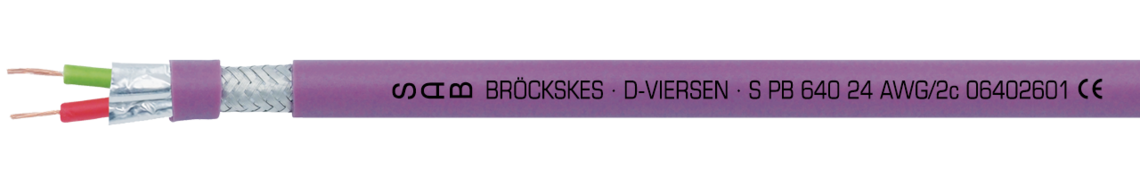

Marking for S PB 640 06402601: SAB BRÖCKSKES · D-VIERSEN · S PB 640 · 24 AWG/2c 06402601 CE
Application
This cable is highly flexible, has a "fast connect" cable structure and is suitable for both fixed and flexible installation. The drag chain-compatible Profibus-DP cable (2 x AWG 24) was specially developed for communication between automation systems and decentralised peripheral devices in the field.
Outstanding features
- suitable for cable tracks
- halogen-free
- flame retardant and self-extinguishing
- very good oil resistance
- short assembling time by „Fast Connect” construction
- avoidance of connection errors
Construction
| Conductor | bare copper strands AWG 24 |
|---|---|
| Insulation | acc. to DIN VDE 0819 part 103 (02YI1) |
| Colour code | red, green |
| Stranding | in layers |
| Wrapping | Alu foil and tinned copper braiding |
| Inner sheath | (nature) SABIX® |
| Sheath material | PUR, TMPU acc. to DIN VDE 0282 part 10 with matt surface |
| Sheath colour | redlilac (RAL 4001) |
bare copper strands AWG 24
acc. to DIN VDE 0819 part 103 (02YI1)
red, green
in layers
Alu foil and tinned copper braiding
(nature) SABIX®
PUR, TMPU acc. to DIN VDE 0282 part 10 with matt surface
redlilac (RAL 4001)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core: 1500 V core/screen: 1500 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d continuously flexible: 15 x d |
| Temperature range | fixed laying: -40/+80°C flexible application: -30/+80°C |
| Halogen-free | acc. to DIN VDE 0472 part 815 + IEC 60754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | very good - TMPU acc. to DIN VDE 0282 part 10 |
| Characteristic impedance 3 - 20 MHz | 150 Ω +/- 10% |
| For fixed installation | suitable |
| For flexible application | suitable |
| Application in cable tracks | recommended |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core: 1500 V
core/screen: 1500 V
fixed laying: 5 x d
flexible application: 10 x d
continuously flexible: 15 x d
fixed laying: -40/+80°C
flexible application: -30/+80°C
acc. to DIN VDE 0472 part 815 + IEC 60754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
very good - TMPU acc. to DIN VDE 0282 part 10
150 Ω +/- 10%
suitable
suitable
recommended
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L06402601 | 2 x 24 AWG | 8,0 ± 0,4 mm | 31,2 kg/km | 57 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
