PN 654
PVC Profinet cable type A for fixed installation

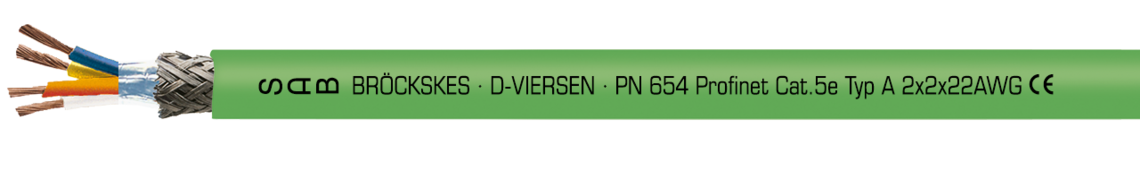

Marking for PN 654 Profinet Type A 06542202: SAB BRÖCKSKES · D-VIERSEN · PN 654 Profinet CAT 5 Typ A 2x2x22AWG CE
Application
The Profinet cable type A is particularly suitable for fixed installation. The minimum bending radius of the cable is 5 x d (fixed laying).
Additional information
also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 2 x 2 x 22 AWG |
|---|---|
| Conductor | bare copper wire |
| Insulation | PE, L/MD acc. to EN 50290-2-23 |
| Colour code | blue, yellow, white, orange |
| Stranding | in layers |
| Wrapping | PETP-foil |
| Screen | tinned copper braiding |
| Sheath material | PVC |
| Sheath colour | green (similar RAL 6018) |
2 x 2 x 22 AWG
bare copper wire
PE, L/MD acc. to EN 50290-2-23
blue, yellow, white, orange
in layers
PETP-foil
tinned copper braiding
PVC
green (similar RAL 6018)
Technical data
| Peak operating voltage | VDE: max 350 V |
|---|---|
| Testing voltage | core/core: 1500 V core/screen: 1200 V |
| Min. bending radius | fixed laying: 5 x d |
| Temperature range | VDE fixed laying: -30/+70 °C VDE flexible application: -5/+70 °C |
| Oil resistance | |
| Characteristic impedance | 100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1) |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
VDE: max 350 V
core/core: 1500 V
core/screen: 1200 V
fixed laying: 5 x d
VDE fixed laying: -30/+70 °C
VDE flexible application: -5/+70 °C
100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency
acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | max. core-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km | |
|---|---|---|---|---|---|---|---|
| L06542202 | 2 x 2 x 22 AWG | 1,55 mm | 28 kg/km | 43 kg/km | 54.1 | Send inquiry |
at 20°C acc. to VDE 0812
max. Ω/km
Other dimensions and colours are possible on request.
