PB 640
flexible PVC Profibus-DP cable

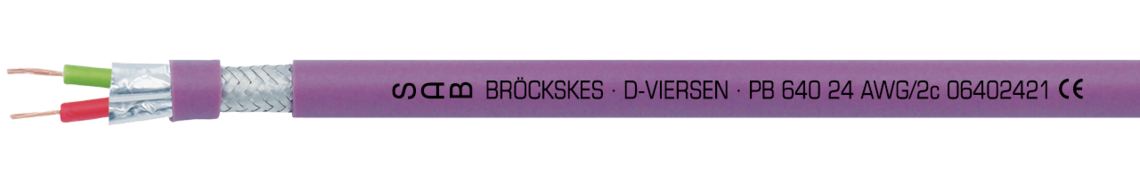

Marking for PB 640 06402421: SAB BRÖCKSKES · D-VIERSEN · PB 640 24 AWG/2c 06402421 CE
Application
Profibus cable for fieldbus cabling - This flexible Profibus Cable has been specially developed for communication between automation systems and decentralized peripheral devices in the field and is suitable for fixed and flexible installation.
Outstanding features
- flame retardant and self-extinguishing
- short assembling time by „Fast Connect” construction
- avoidance of connection errors
Construction
| Conductor | bare copper strands AWG 24 |
|---|---|
| Insulation | acc. to EN 50290-2-23 + VDE 0819-103 (02YI1) |
| Colour code | red, green |
| Stranding | in layers |
| Inner sheath (nature) | PVC |
| Screen | alu foil and tinned copper braiding |
| Sheath material | PVC, TM2 acc. to EN 50363-4-1 |
| Sheath colour | redlilac (RAL 4001) |
bare copper strands AWG 24
acc. to EN 50290-2-23 + VDE 0819-103 (02YI1)
red, green
in layers
PVC
alu foil and tinned copper braiding
PVC, TM2 acc. to EN 50363-4-1
redlilac (RAL 4001)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core: 1500 V core/screen: 1500 V |
| Min. bending radius | 12 x d |
| Temperature range | fixed laying: -30/+70 °C flexible application: -5/+70 °C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | |
| Characteristic impedance 3 - 20 MHz | 150 Ω +/- 10% |
| For fixed installation | suitable |
| For flexible application | suitable |
| Application in cable tracks | not recommended |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core: 1500 V
core/screen: 1500 V
12 x d
fixed laying: -30/+70 °C
flexible application: -5/+70 °C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
150 Ω +/- 10%
suitable
suitable
not recommended
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L06402421 | 2 x 24 AWG | 8,0 ± 0,4 mm | 31,2 kg/km | 63 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
