CC 600 P red

PUR control cable with numbered red cores and inner sheath acc. to UL/CSA

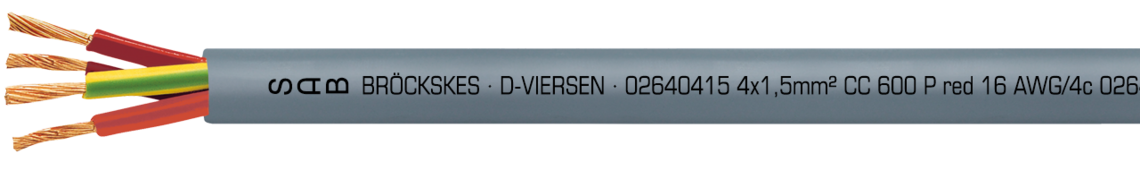

Marking for CC 600 P red 02640510: SAB BRÖCKSKES · D-VIERSEN · 02640510 5 x 1,0 mm² CC 600 P red 18 AWG/5c 02641805 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Download data sheet for CC 600 P red

Questions about our products?

Application

This PUR control cable has got a very good chemical and oil resistance. It is for example applied in chemical industry and machine and plant construction.

Outstanding features

UL recognized, CSA approved
oil resistant
abrasion resistant
notch resistant
good chemical resistance

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	red cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	in layers
Inner sheath	from 4,0 mm²: PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3
Sheath material	PU acc. to UL 758
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

red cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

from 4,0 mm²: PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath material

PU acc. to UL 758

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	Uo/U: 300/500 V UL/CSA: 600 V
Testing voltage	core/core 2000 V
Min. bending radius	fixed laying: 4 x d flexible application: 6 x d
Radiation resistance	5 x 10^7 cJ/kg
Temperature range	DIN VDE fixed laying: -40/+70°C DIN VDE flexible application: +5/+70°C UL/CSA: up to +80°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1, FT2
Oil resistance	very good - oilrating 60°C acc. to UL 1581
Chem. resistance	good against acids, alkalines, solvents, hydraulic liquids, etc.
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U: 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1, CSA FT1, FT2

Oil resistance

very good - oilrating 60°C acc. to UL 1581

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Copper figure	Cable weight ≈	Outer-ø ± 5%
L02640205	2 x 0,50 mm²	0,21 mm	10,3 kg/km	48 kg/km	6,2 mm	Send inquiry
L02640305	3 x 0,50 mm²	0,21 mm	15,4 kg/km	56 kg/km	6,4 mm	Send inquiry
L02640405	4 x 0,50 mm²	0,21 mm	20,5 kg/km	66 kg/km	6,8 mm	Send inquiry
L02640505	5 x 0,50 mm²	0,21 mm	25,6 kg/km	79 kg/km	7,4 mm	Send inquiry
L02640705	7 x 0,50 mm²	0,21 mm	35,9 kg/km	96 kg/km	7,9 mm	Send inquiry
L02641205	12 x 0,50 mm²	0,21 mm	61,5 kg/km	144 kg/km	10,1 mm	Send inquiry
L02641805	18 x 0,50 mm²	0,21 mm	92,3 kg/km	203 kg/km	11,6 mm	Send inquiry
L02642505	25 x 0,50 mm²	0,21 mm	128,2 kg/km	265 kg/km	13,7 mm	Send inquiry
L02643005	30 x 0,50 mm²	0,21 mm	153,8 kg/km	306 kg/km	14,1 mm	Send inquiry
L02643405	34 x 0,50 mm²	0,21 mm	174,3 kg/km	347 kg/km	15,2 mm	Send inquiry
L02644205	42 x 0,50 mm²	0,21 mm	215,3 kg/km	432 kg/km	16,6 mm	Send inquiry
L02645005	50 x 0,50 mm²	0,21 mm	256,4 kg/km	492 kg/km	18 mm	Send inquiry
L02640207	2 x 0,75 mm²	0,21 mm	14,4 kg/km	58 kg/km	6,7 mm	Send inquiry
L02640307	3 x 0,75 mm²	0,21 mm	21,6 kg/km	67 kg/km	6,9 mm	Send inquiry
L02640407	4 x 0,75 mm²	0,21 mm	28,8 kg/km	80 kg/km	7,4 mm	Send inquiry
L02640507	5 x 0,75 mm²	0,21 mm	36 kg/km	96 kg/km	8 mm	Send inquiry
L02640707	7 x 0,75 mm²	0,21 mm	50,4 kg/km	130 kg/km	9,3 mm	Send inquiry
L02641207	12 x 0,75 mm²	0,21 mm	86,4 kg/km	178 kg/km	11,1 mm	Send inquiry
L02641807	18 x 0,75 mm²	0,21 mm	129,6 kg/km	253 kg/km	12,9 mm	Send inquiry
L02642507	25 x 0,75 mm²	0,21 mm	180 kg/km	330 kg/km	15,2 mm	Send inquiry
L02643007	30 x 0,75 mm²	0,21 mm	216 kg/km	393 kg/km	16 mm	Send inquiry
L02643407	34 x 0,75 mm²	0,21 mm	244,8 kg/km	446 kg/km	17,3 mm	Send inquiry
L02644207	42 x 0,75 mm²	0,21 mm	302,4 kg/km	542 kg/km	18,5 mm	Send inquiry
L02645007	50 x 0,75 mm²	0,21 mm	360 kg/km	621 kg/km	20,1 mm	Send inquiry
L02640210	2 x 1,00 mm²	0,21 mm	19,2 kg/km	64 kg/km	6,9 mm	Send inquiry
L02640310	3 x 1,00 mm²	0,21 mm	28,8 kg/km	76 kg/km	7,1 mm	Send inquiry
L02640410	4 x 1,00 mm²	0,21 mm	38,4 kg/km	91 kg/km	7,7 mm	Send inquiry
L02640510	5 x 1,00 mm²	0,21 mm	48 kg/km	110 kg/km	8,3 mm	Send inquiry
L02640710	7 x 1,00 mm²	0,21 mm	67,2 kg/km	148 kg/km	9,6 mm	Send inquiry
L02641210	12 x 1,00 mm²	0,21 mm	115,2 kg/km	207 kg/km	11,5 mm	Send inquiry
L02641810	18 x 1,00 mm²	0,21 mm	172,8 kg/km	297 kg/km	13,4 mm	Send inquiry
L02642510	25 x 1,00 mm²	0,21 mm	240 kg/km	397 kg/km	16 mm	Send inquiry
L02643010	30 x 1,00 mm²	0,21 mm	288 kg/km	465 kg/km	16,7 mm	Send inquiry
L02643410	34 x 1,00 mm²	0,21 mm	326,4 kg/km	528 kg/km	18 mm	Send inquiry
L02644210	42 x 1,00 mm²	0,21 mm	403,2 kg/km	642 kg/km	19,2 mm	Send inquiry
L02645010	50 x 1,00 mm²	0,21 mm	480 kg/km	806 kg/km	22,5 mm	Send inquiry
L02640215	2 x 1,50 mm²	0,26 mm	28,8 kg/km	79 kg/km	7,5 mm	Send inquiry
L02640315	3 x 1,50 mm²	0,26 mm	43,2 kg/km	96 kg/km	7,8 mm	Send inquiry
L02640415	4 x 1,50 mm²	0,26 mm	57,6 kg/km	116 kg/km	8,4 mm	Send inquiry
L02640515	5 x 1,50 mm²	0,26 mm	72 kg/km	140 kg/km	9,1 mm	Send inquiry
L02640715	7 x 1,50 mm²	0,26 mm	100,8 kg/km	190 kg/km	10,6 mm	Send inquiry
L02641215	12 x 1,50 mm²	0,26 mm	172,8 kg/km	271 kg/km	12,8 mm	Send inquiry
L02641815	18 x 1,50 mm²	0,26 mm	259,2 kg/km	392 kg/km	14,9 mm	Send inquiry
L02642515	25 x 1,50 mm²	0,26 mm	360 kg/km	536 kg/km	18 mm	Send inquiry
L02643015	30 x 1,50 mm²	0,26 mm	432 kg/km	625 kg/km	18,6 mm	Send inquiry
L02643415	34 x 1,50 mm²	0,26 mm	489,6 kg/km	786 kg/km	20,1 mm	Send inquiry
L02644215	42 x 1,50 mm²	0,26 mm	604,8 kg/km	936 kg/km	22,9 mm	Send inquiry
L02645015	50 x 1,50 mm²	0,26 mm	720 kg/km	1080 kg/km	25 mm	Send inquiry
L02640225	2 x 2,50 mm²	0,26 mm	48 kg/km	112 kg/km	8,7 mm	Send inquiry
L02640325	3 x 2,50 mm²	0,26 mm	72 kg/km	140 kg/km	9,1 mm	Send inquiry
L02640425	4 x 2,50 mm²	0,26 mm	96 kg/km	170 kg/km	9,8 mm	Send inquiry
L02640525	5 x 2,50 mm²	0,26 mm	120 kg/km	208 kg/km	10,7 mm	Send inquiry
L02640725	7 x 2,50 mm²	0,26 mm	168 kg/km	288 kg/km	12,6 mm	Send inquiry
L02641225	12 x 2,50 mm²	0,26 mm	288 kg/km	412 kg/km	15,3 mm	Send inquiry
L02641825	18 x 2,50 mm²	0,26 mm	432 kg/km	613 kg/km	18,2 mm	Send inquiry
L02642525	25 x 2,50 mm²	0,26 mm	600 kg/km	885 kg/km	23,2 mm	Send inquiry
L02640340	3 x 4,00 mm²	0,31 mm	115,2 kg/km	233 kg/km	11,9 mm	Send inquiry
L02640440	4 x 4,00 mm²	0,31 mm	153,6 kg/km	288 kg/km	13 mm	Send inquiry
L02640540	5 x 4,00 mm²	0,31 mm	192 kg/km	342 kg/km	13,9 mm	Send inquiry
L02640460	4 x 6,00 mm²	0,31 mm	230,4 kg/km	393 kg/km	14,7 mm	Send inquiry
L02640560	5 x 6,00 mm²	0,31 mm	288 kg/km	482 kg/km	16,1 mm	Send inquiry
L02640461	4 x 10,0 mm²	0,41 mm	384 kg/km	644 kg/km	18,5 mm	Send inquiry
