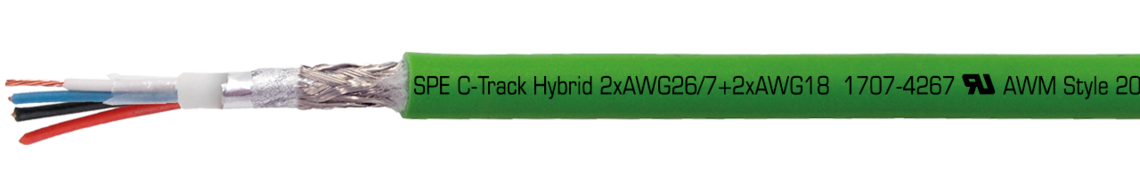

CATLine SPE C-Track Hybrid
Single Pair Ethernet cable, suitable for cable tracks with power supply and UL recognition
Application
Single pair Ethernet cable with power supply and UL approval for use in drag chains. The SPE Hybrid cable fulfils the electrical and transmission requirements for high frequency in accordance with IEC 61156-12. The Single Pair Ethernet Hybrid cable is suitable for direct power supply of up to approx. 200 W at 24 V or approx. 400 W at 48 V. The data transmission rate is 1 Gbit/s up to 40 metres.
Outstanding features
- UL recognized
- suitable for direct power supply of up to approx. 200 W at 24 V or approx. 400 W at 48 V
- SPE plus energy supply
- short latency periods
- PWIS uncritical (PWIS = paint-wetting impairment substances)
Construction
| Conductor | bare copper strands |
|---|---|
| Insulation | SPE-element: special polymer energy supply: special polymer |
| Colour code | SPE-element: white, blue energy supply: red, black |
| Stranding | in pairs |
| Screen | alu foil white, blue |
| Stranding | together |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | green (similar RAL 6018) |
bare copper strands
SPE-element: special polymer
energy supply: special polymer
SPE-element: white, blue
energy supply: red, black
in pairs
alu foil white, blue
together
tinned copper braiding
non-woven tape
PUR
green (similar RAL 6018)
Technical data
| Peak operating voltage | max. 90 V |
|---|---|
| Voltage UL | 300 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d continuously flexible: 15 x d |
| Temperature range | DIN VDE fixed laying: -40/+70 °C flexible application: -40/+70 °C
UL/CSA: up to +80 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Characteristic impedance | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to IEC 61156-12. Bandwidth 1 - 600 MHz. |
| Data transfer | 1 Gbit up to 40 m |
| UL Style | 20549 |
| Absence of harmful substances | acc. to RoHS directive of the European Union, see chapter N „Technical data“ |
max. 90 V
300 V
core/core 2000 V
core/screen 2000 V
fixed laying: 5 x d
flexible application: 10 x d
continuously flexible: 15 x d
DIN VDE
fixed laying: -40/+70 °C
flexible application: -40/+70 °C
UL/CSA: up to +80 °C
acc. to IEC 60754-1 + VDE 0482-754-1
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency
with reference to IEC 61156-12.
Bandwidth 1 - 600 MHz.
1 Gbit up to 40 m
20549
acc. to RoHS directive of the European Union, see chapter N „Technical data“
Dimension
| item no. | Type | Dimension | Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L17074267 | CATLine SPE C-Track Hybrid | 2 x 26/7 AWG + 2 x AWG 18 | 6,2 mm | 38,2 kg/km | 66 kg/km | Send inquiry |
| L17076267 | CATLine SPE C-Track Hybrid | 2 x 22/7 AWG + 2 x AWG 18 | 7,5 mm | 43,5 kg/km | 77 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
