GP 400 QF

400 Hz Ground Power supply cable - QuadFlex

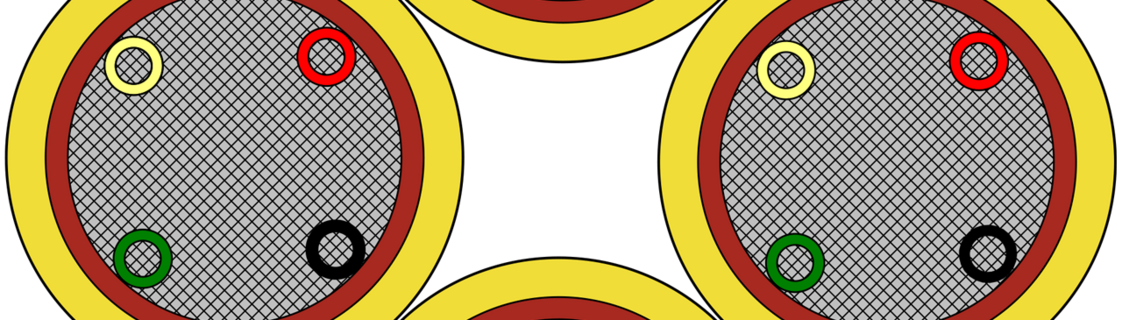

Marking example: SAB BRÖCKSKES · D-VIERSEN · GP 400 QF 4x(50,0mm²+4x1,0mm²) 3400-4321 L1 resp. L2 resp. L3 resp. N CE and continuous meter marking

Download data sheet for GP 400 QF

Questions about our products?

Application

For use in flexible applications, e.g. mobile generators, cable dispensers in the ground or on the passenger bridge.

Outstanding features

low capacity insulation
abrasion-resistant PUR sheath
control cores symmetrically arranged
cold flexible
halogen-free
oil resistant
weather resistant

Construction

Conductor	tinned copper strands
Insulation	SABIX®
Colour code	control cores: red, black, green, yellow power supply core: red
Stranding	control cores within the power supply core
Sheath material	PUR
Sheath colour	orange
Stranding	open stranded

Conductor

tinned copper strands

Insulation

SABIX®

Colour code

control cores: red, black, green, yellow

power supply core: red

Stranding

control cores within the power supply core

Sheath material

PUR

Sheath colour

orange

Stranding

open stranded

Technical data

Nominal voltage	Uo/U 115/200 V
Max. permissible operating voltage	Uo/U 0,6/1 kV using all wires on one potential
Testing voltage	core/core 4000 V AC
Min. bending radius	fixed laying: 4 x d flexible application : 6 x d
Temperature range	fixed laying: -50/+90 °C flexible application: -40/+90 °C limited time of use: +110 °C (7500 h)
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Oil resistance	very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
Weather resistance	very good
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 115/200 V

Max. permissible operating voltage

Uo/U 0,6/1 kV

using all wires on one potential

Testing voltage

core/core 4000 V AC

Min. bending radius

fixed laying: 4 x d

flexible application : 6 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

limited time of use: +110 °C (7500 h)

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Approx. outer-ø	Copper figure	Cable weight ≈	Ohmic resistance at 20°C max.	Voltage drop	Outer-ø ± 5%
L34004321	4 x (50,0mm² + 4 x 1,0 mm²)	37,5 mm	2096,0 kg/km	2401 kg/km	0,393 / 20,0 Ω/km	0,786 / 40,0 [mV/(A*m)]	37,5 mm	Send inquiry
L34004421	4 x (70,0mm² + 4 x 1,0 mm²)	42,5 mm	2956,8 kg/km	3264 kg/km	0,277 / 20,0 Ω/km	0,554 / 40,0 [mV/(A*m)]	42,5 mm	Send inquiry

item no.

No. of cores x
cross section

Approx. outer-ø

Copper figure

Cable weight ≈

Ohmic resistance
at 20°C max.

Voltage drop

Outer-ø ± 5%

L34004321

4 x (50,0mm² + 4 x 1,0 mm²)

37,5 mm

2096,0 kg/km

2401 kg/km

0,393 / 20,0 Ω/km

0,786 / 40,0 [mV/(A*m)]

37,5 mm

Send inquiry

L34004421

4 x (70,0mm² + 4 x 1,0 mm²)

42,5 mm

2956,8 kg/km

3264 kg/km

0,277 / 20,0 Ω/km

0,554 / 40,0 [mV/(A*m)]
